該機采用PLC觸摸屏操控，帶網絡遠程連線功能，拋光磨料配置電流自動補償，變頻調速，進料可連續或間隔進料加工，電動壓桿，為手動、自動一體機，可手動、自動分體操作，根據石材不同尺寸，厚度磨削各種大理石，花崗巖，人造石，瓷磚等材料的1/2圓邊，1/4圓邊，法國邊，雙法邊，21號邊等各種異形羅馬邊線形，粗磨、精磨、拋光工序一次完成，加工后亮度高于板面亮度，拋光磨輪磨損消耗后，磨輪可在運行過程中自動補償，結構先進合理，精準度高，效率快，操作方便，維護簡單，在磨削過程中可調節進料速度和進行量，最大加工4m/分鐘，機械正常使用相當于正常石材加工15個人工作量，并杜絕出現工人加工時產生的工藝缺陷。

MB-8T-3015 Eight-head Horizontal CNC stone Line polish machine, applicable for granite and marble irregular edge polishing, fitted with auto grinding wheel compensation and PLC touch screen operation, stable operation performance.

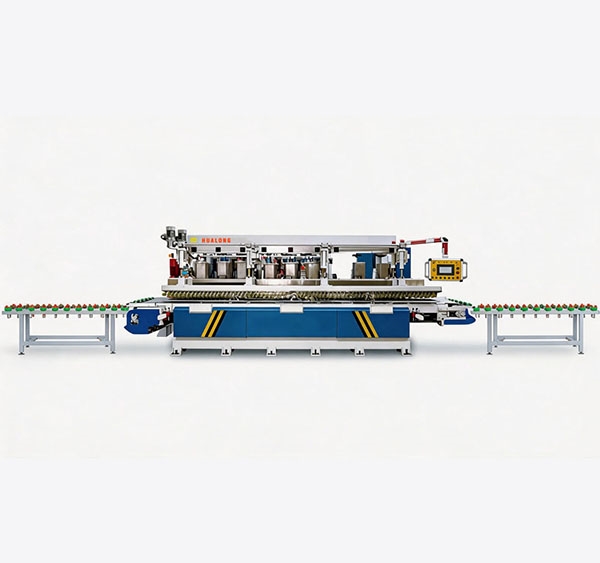

MB-8T-3015 Eight-head CNC Horizontal stone Line polish machine

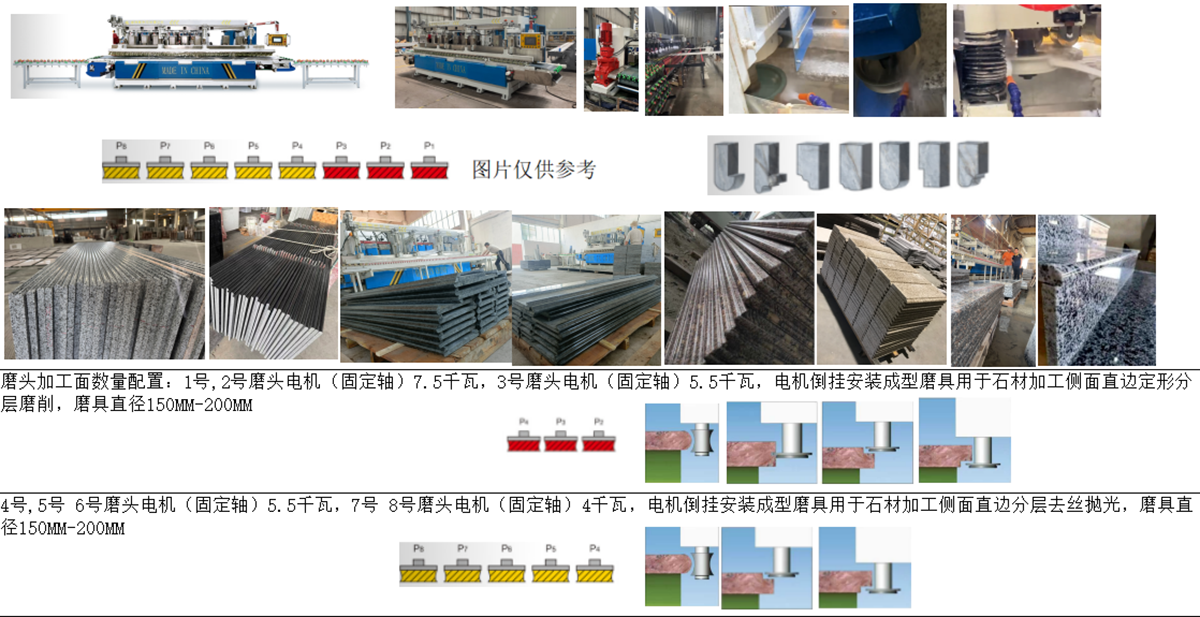

This is a full-automatic stone side processing equipment specially designed for stone processing factories. Equipped with 8 sets of independent polishing heads arranged in sequence, it can complete rough grinding, fine grinding and high-gloss polishing processes in one pass. The glossiness of processed stone sides is much higher than that of original stone surfaces.

The whole machine adopts intelligent PLC touch screen control, frequency conversion speed regulation and automatic grinding wheel compensation technology, supporting both continuous feeding and intermittent feeding modes.

Processing specifications: board width 100-3000mm, board thickness 10-80mm. It can process various edge profiles including semicircular edge, quarter round edge, French edge, double French edge, Roman special-shaped edge, etc., with maximum processing speed up to 4 meters per minute.

It is standard equipped with 1.5m×0.6m feeding and discharging conveyor frame. Feeding direction: right to left.

Technical Parameters

Core Advantages

1、Intelligent Touch Screen Operation & Remote Network Connection

Equipped with high-definition touch control interface, easy to operate.

It supports remote network connection to realize remote equipment monitoring and fault diagnosis.

Processing parameters can be adjusted in real time during operation; various edge profile processing programs can be saved and recalled with one click.

2、Automatic Grinding Wheel Compensation Function

Adopts current-sensing automatic compensation system to monitor grinding wheel wear in real time.

It automatically fine-tunes the processing position as the wheel wears down.

Consistent machining accuracy is ensured all the time, cutting manual commissioning frequency by 80%.

3、Stepless Variable Frequency Speed Regulation

Feeding speed is freely adjustable from 0.5 to 3 meters per minute.

Speed can be matched according to stone hardness and edge profile complexity.

Balances production efficiency and finished quality, and saves energy at low speed operation.

4、Dual-mode Feeding Design

Continuous feeding: for mass standardized production of stones in uniform specifications.

Intermittent feeding: suitable for irregular-sized slabs and customized special-shaped stone processing.

Electric pressing mechanism is equipped to firmly fix stones during processing.

5、Integrated Manual & Automatic Control

Manual mode: dedicated for machine debugging, sample trial processing and customized special-shaped machining.

Automatic mode: unattended full-automatic mass production.

One-click switch between two modes without repeated debugging; processing can be paused and intervened anytime.

6、Reinforced Heavy-duty Machine Body Structure

Motor housings and pressure wheel guards are made of stainless steel.

The main frame undergoes three-layer anti-corrosion treatment: sandblasting derusting, anti-rust primer and wear-resistant finish paint.

Thickened welded steel structure ensures long service life, perfectly adapting to harsh wet working environment in stone factories.
